▊ 概要
高思（GAOSSI®）专业供应韩国三元ACT（SAMWON ACT，삼원액트）品牌PLC IO电缆（I/O Cable I/Oケーブル，I/O 케이블）C40HF-PX,C40HF-LX,C37HDPX,C37HD-LX,C40HF-PB,C40HF-LB,C37HD-PB,C37HD-LB等接口端子和继电器板连接电缆等产品，应用在汽车、光伏、机床、冲床/压力机、车辆、钢铁、建筑、机械设备、电气设备、电子、通讯、医疗器械等行业。
—— ◇ ——
▣ BRIEF INTRODUCTION
- PLC IO电缆：接口端子和继电器板连接电缆
- C40HF-PX,C40HF-LX,C37HDPX,C37HD-LX,C40HF-PB,C40HF-LB,C37HD-PB,C37HD-LB等
※ Pictures shown are for illustrative purposes only.
▊ 属性
| 品名 NAME | 型号 TYPE | 系列 SERIES |
| PLC IO电缆（I/O Cable I/Oケーブル，I/O 케이블） | C40HH、C40HF、C37HD、C20HH、R40HH、R40HF | — |
| 品牌 BRAND | 系别 COUNTRY | 产地 ORIGIN |
| 三元ACT（SAMWON ACT，삼원액트） | 韩国 | 釜山 |
▊ 型号
高思（GAOSSI®）专业供应以下系列型号产品：
☑ 系列型号
表1 PLC IO电缆：接口端子和继电器板连接电缆列型号
| Connector | Terminal block / Relay terminal cable | Operation display type terminal block cable | Length |
| PLC side :Tyco PC I/O 40P Terminal block, RB side :OMRON XG4M 40P | C40HF-05PX-□ | C40HF-05LX-□ | 0.5M |
| C40HF-10PX-□ | C40HF-10LX-□ | 1M | |
| C40HF-15PX-□ | C40HF-15LX-□ | 1.5M | |
| C40HF-20PX-□ | C40HF-20LX-□ | 2M | |
| C40HF-30PX-□ | C40HF-30LX-□ | 3M | |
| C40HF-50PX-□ | C40HF-50LX-□ | 5M | |
| C40HF-100PX-□ | C40HF-100LX-□ | 10M | |
| Connector | Terminal block / Relay terminal cable | Operation display type terminal block cable | Length |
| PLC side :Tyco HDF-20 37P Terminal block, RB side :OMRON XG4M 40P | C37HD-05PX-□ | C37HD-05LX-□ | 0.5M |
| C37HD-10PX-□ | C37HD-10LX-□ | 1M | |
| C37HD-15PX-□ | C37HD-15LX-□ | 1.5M | |
| C37HD-20PX-□ | C37HD-20LX-□ | 2M | |
| C37HD-30PX-□ | C37HD-30LX-□ | 3M | |
| C37HD-50PX-□ | C37HD-50LX-□ | 5M | |
| C37HD-100PX-□ | C37HD-100LX-□ | 10M | |
| Connector | Terminal block / Relay terminal cable | Operation display type terminal block cable | Length |
| PLC side : Tyco PC I/O 40P Terminal block, RB side :OMRON XG4M 40P | C40HF-05PB-□ | C40HF-05LB-□ | 0.5M |
| C40HF-10PB-□ | C40HF-10LB-□ | 1M | |
| C40HF-15PB-□ | C40HF-15LB-□ | 1.5M | |
| C40HF-20PB-□ | C40HF-20LB-□ | 2M | |
| C40HF-30PB-□ | C40HF-30LB-□ | 3M | |
| C40HF-50PB-□ | C40HF-50LB-□ | 5M | |
| C40HF-100PB-□ | C40HF-100LB-□ | 10M | |
| Connector | Terminal block / Relay terminal cable | Operation display type terminal block cable | Length |
| PLC side :Tyco HDF-20 37P Terminal block, RB side :OMRON XG4M 40P | C37HD-05PB-□ | C37HD-05LB-□ | 0.5M |
| C37HD-10PB-□ | C37HD-10LB-□ | 1M | |
| C37HD-15PB-□ | C37HD-15LB-□ | 1.5M | |
| C37HD-20PB-□ | C37HD-20LB-□ | 2M | |
| C37HD-30PB-□ | C37HD-30LB-□ | 3M | |
| C37HD-50PB-□ | C37HD-50LB-□ | 5M | |
| C37HD-100PB-□ | C37HD-100LB-□ | 10M | |
| Connector | Terminal block / Relay terminal cable | Operation display type | Length |
| PLC side :HIROSE HIF3B 40P Terminal block, RB side :OMRON XG4M 40P | C40HH-05PU-□ | C40HH-05LU-□ | 0.5M |
| C40HH-10PU-□ | C40HH-10LU-□ | 1M | |
| C40HH-15PU-□ | C40HH-15LU-□ | 1.5M | |
| C40HH-20PU-□ | C40HH-20LU-□ | 2M | |
| C40HH-30PU-□ | C40HH-30LU-□ | 3M | |
| C40HH-50PU-□ | C40HH-50LU-□ | 5M | |
| C40HH-100PU-□ | C40HH-100LU-□ | 10M | |
| Connector | Terminal block / Relay terminal cable | Operation display type | Length |
| PLC side :HIROSE HIF3B 40P Terminal block, RB side :OMRON XG4M 40P | C40HH-05PH-□ | C40HH-05LH-□ | 0.5M |
| C40HH-10PH-□ | C40HH-10LH-□ | 1M | |
| C40HH-15PH-□ | C40HH-15LH-□ | 1.5M | |
| C40HH-20PH-□ | C40HH-20LH-□ | 2M | |
| C40HH-30PH-□ | C40HH-30LH-□ | 3M | |
| C40HH-50PH-□ | C40HH-50LH-□ | 5M | |
| C40HH-100PH-□ | C40HH-100LH-□ | 10M | |
| Connector | Terminal block / Relay terminal cable | Operation display type | Length |
| PLC side :HIROSE HIF3B 20P Terminal block, RB side :OMRON XG4M 20P | C20HH-05PU-□ | C20HH-05LU-□ | 0.5M |
| C20HH-10PU-□ | C20HH-10LU-□ | 1M | |
| C20HH-15PU-□ | C20HH-15LU-□ | 1.5M | |
| C20HH-20PU-□ | C20HH-20LU-□ | 2M | |
| C20HH-30PU-□ | C20HH-30LU-□ | 3M | |
| C20HH-50PU-□ | C20HH-50LU-□ | 5M | |
| C20HH-100PU-□ | C20HH-100LU-□ | 10M | |
| Connector | Terminal block / Relay terminal cable | Operation display type | Length |
| PLC side :HIROSE HIF3B 20P Terminal block, RB side :OMRON XG4M 20P | C20HH-05SL-□ | C20HH-05LB-□ | 0.5M |
| C20HH-10SL-□ | C20HH-10LB-□ | 1M | |
| C20HH-15SL-□ | C20HH-15LB-□ | 1.5M | |
| C20HH-20SL-□ | C20HH-20LB-□ | 2M | |
| C20HH-30SL-□ | C20HH-30LB-□ | 3M | |
| C20HH-50SL-□ | C20HH-50LB-□ | 5M | |
| C20HH-100SL-□ | C20HH-100LB-□ | 10M | |
| Connector | Terminal block / Relay terminal cable | Operation display type | Length |
| PLC side :HIROSE HIF3B 20P2 Terminal block, RB side :OMRON XG4M 40P | R40HH-05SM-□ | 0.5M | |
| R40HH-10SM-□ | 1M | ||
| R40HH-15SM-□ | 1.5M | ||
| R40HH-20SM-□ | 2M | ||
| R40HH-30SM-□ | 3M | ||
| R40HH-50SM-□ | 5M | ||
| R40HH-100SM-□ | 10M | ||
| Connector | Terminal block / Relay terminal cable | Operation display type | Length |
| PLC side : OMRON GX4 20P Terminal block, RB side :OMRON XG4M 20P | C20HH-05SM-□ | 0.5M | |
| C20HH-10SM-□ | 1M | ||
| C20HH-15SM-□ | 1.5M | ||
| C20HH-20SM-□ | 2M | ||
| C20HH-30SM-□ | 3M | ||
| C20HH-50SM-□ | 5M | ||
| C20HH-100SM-□ | 10M | ||
| Connector | Terminal block / Relay terminal cable | Length | |
| PLC side : Tyco PC I/O 40P Terminal block, RB side :OMRON XG4M 20P2 | R40HF-05PB-□ | 0.5M | |
| R40HF-10PB-□ | 1M | ||
| R40HF-15PB-□ | 1.5M | ||
| R40HF-20PB-□ | 2M | ||
| R40HF-30PB-□ | 3M | ||
| R40HF-50PB-□ | 5M | ||
| R40HF-100PB-□ | 10M | ||
| Connector | Terminal block / Relay terminal cable | Length | |
| PLC side :Tyco HDF-20 37P Terminal block, RB side :OMRON XG4M 20P2 | R37HD-05PB-□ | 0.5M | |
| R37HD-10PB-□ | 1M | ||
| R37HD-15PB-□ | 1.5M | ||
| R37HD-20PB-□ | 2M | ||
| R37HD-30PB-□ | 3M | ||
| R37HD-50PB-□ | 5M | ||
| R37HD-100PB-□ | 10M | ||
| Connector | Terminal block / Relay terminal cable | Length | |
| PLC side :HIROSE HIF3 40P Terminal block, RB side :OMRON XG4M 20P2 | R40HH-05PH-□ | 0.5M | |
| R40HH-10PH-□ | 1M | ||
| R40HH-15PH-□ | 1.5M | ||
| R40HH-20PH-□ | 2M | ||
| R40HH-30PH-□ | 3M | ||
| R40HH-50PH-□ | 5M | ||
| R40HH-100PH-□ | 10M | ||
| Connector | General purpose 1:1 cable Note1) | Length | |
| OMRON XG4M 40P2 | C40HH-05SB-0 | 0.5M | |
| C40HH-10SB-0 | 1M | ||
| C40HH-15SB-0 | 1.5M | ||
| C40HH-20SB-0 | 2M | ||
| C40HH-30SB-0 | 3M | ||
| C40HH-50SB-0 | 5M | ||
| C40HH-100SB-0 | 10M | ||
| Connector | General purpose 1:1 cable Note1) | Length | |
| OMRON XG4M 20P2 | C20HH-05SL-0 | 0.5M | |
| C20HH-10SL-0 | 1M | ||
| C20HH-15SL-0 | 1.5M | ||
| C20HH-20SL-0 | 2M | ||
| C20HH-30SL-0 | 3M | ||
| C20HH-50SL-0 | 5M | ||
| C20HH-100SL-0 | 10M |
说明：以上系列型号源自于产品目录或企业官网。如有发生变更，恕不另行通知，具体可参考官网、产品目录或官方通告。
☑ 型号说明
• 略
☑ 型号示例
• C40HF-10PB-1、C40HF-15PB-1、R40HF-15PB-MI1、R40HF-10PB-MI1、R40HF-20PB-MI1、C40HF-05PB-1
提示：了解更多系列型号，可咨询客服、参考产品目录或企业官网。
▊ 规格
☑ 规格参数
| Item | Specifications |
| PLC side connector | Tyco PC IO Connector, HDF-20 / FUJITSU FCN36 / HIROSE HIF3B / OMRON XG / etc. |
| IOLINK module side connector | HIROSE HIF3B / OMRON XG / Tyco PC IO Connector |
| Cable | UL2969 twist pair cable |
| Max. transmission length | 10M |
| Cable color | Brown |
Ratings/Characteristics
| Rated current | 1A at 20℃ |
| Rated voltage | 30V DC |
| Contact resistance | 20mΩ min. with 100mA Note1) |
| Insulation resistance | 100MΩ min. at 500VDC |
| Withstand voltage | 500VAC for 1min. Note2) |
| Ambient temperature | -25℃ to 80℃ (Operating) |
Cable specifications
| Maker | SAMWON ACT |
| AWG Size | AWG28 (7/0.127) |
| Condutor resistance | 239Ω/km max. at 20℃ |
| Insulation resistance | 11MΩ/km min. at 20℃ |
| UL form | NO.2969 or 20276 80℃ 30V |
| Fire retardant | VW-1 |

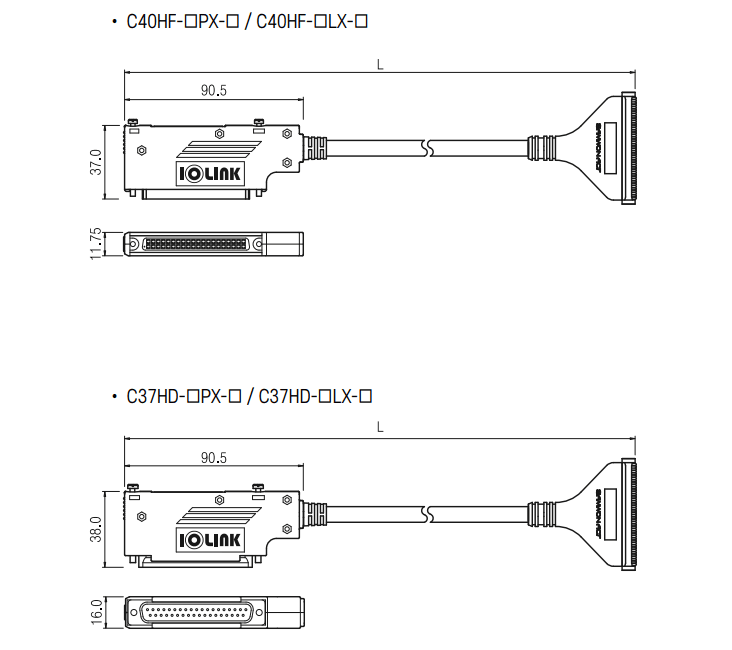

☑ 外形规格
说明：以上规格参数源自于产品目录或企业官网。如有发生变更，恕不另行通知，具体可参考官网、产品目录或官方通告。
▊ 特点
• 使用各PLC制造商推荐规格的连接器，确保质量安全
• 所有产品使用专用保护罩，外观优美
• 大量拥有各PLC制造商的连接器，可实现短交期
▊ 应用
• 应用在汽车、光伏、机床、冲床/压力机、车辆、钢铁、建筑、机械设备、电气设备、电子、通讯、医疗器械等行业。
